VARIABLE DIRECTION STAND FOR IR FLAME DETECTOR RIV-601P/F

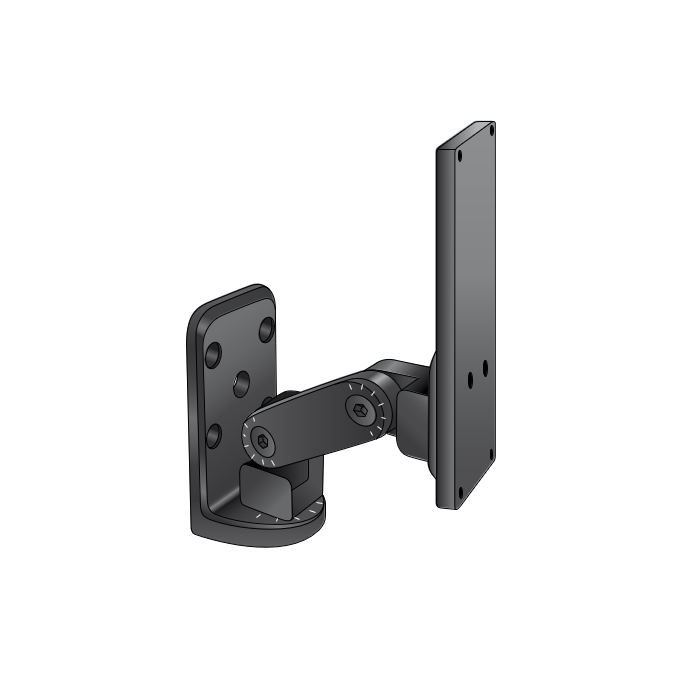

The Variable Direction Stand SOR-876 is a useful accessory for installing IR Flame Detector RIV-601P/F when an easy change of direction of the optical field of view toward the area of interest is needed. It is composed of a steering arm fully adjustable on all axes and of a base plate designed for IR Flame Detector RIV-601P/F mounting. Both the steering arm and the base plate are made of aluminium, screw parts are of stainless steel, and can be used in outdoor applications.


Specifications
• Multiple adjustable on all axes with 4 joints
• Wall and celing mounting
• Steering arm material: die-cast aluminium powder coated black paint
• Base plate material: aluminium powder coated black paint
• Packaging 155x145x120mm containing:
- 1 steering arm complete with base plate
- 4 screws M4x25 with washers for Flame Detector mounting
- 1 hex key
- 1 datasheet
• Total weight kg 0.7 net – kg 0.8 gross
