VARIABLE DIRECTION STAND FOR IR EXPLOSION-PROOF FLAME DETECTOR RIV-601P/FA

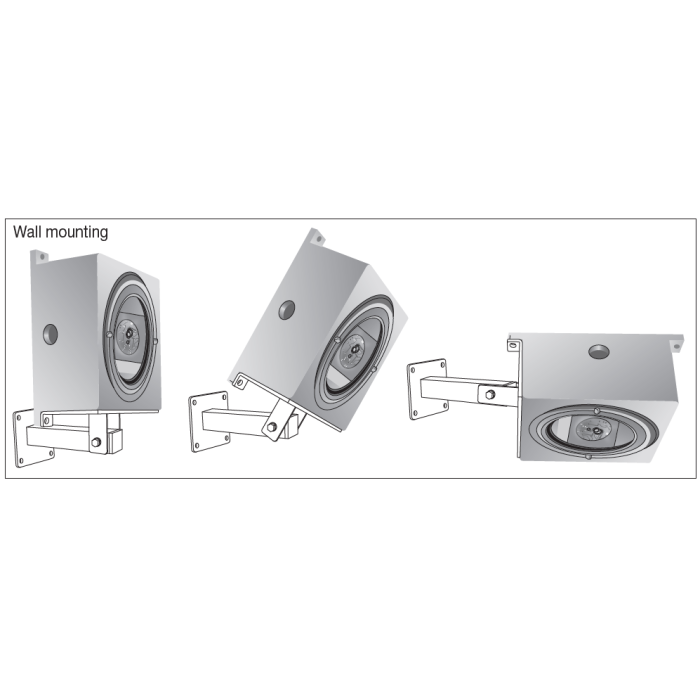

The Variable Direction Stand SOA-875 is a useful accessory for installing IR Explosion-Proof Flame Detector RIV-601P/FA when an easy change of direction of the optical field of view towards the area of interest is needed. It is composed of a steering arm with both horizontal and vertical steering, and of a base plate designed for IR Explosion-Proof Flame Detector RIV-601P/FA mounting. The Variable Direction Stand and the screw parts are made of stainless steel, and can be used in outdoor applications.


Specifications
• Steering range: horizontal 360° vertical ± 90°
• Dimensions: 270x129x72mm
• Material: AISI 316L polished stainless steel
• Total weight: kg 2,500 net - 2,800 gross
