PORTABLE TEST LAMP FOR RIV-601/F and RIV-601P/F and IR FlAME DETECTORS
€634.40
€520.00
In stock
SKU
1000703

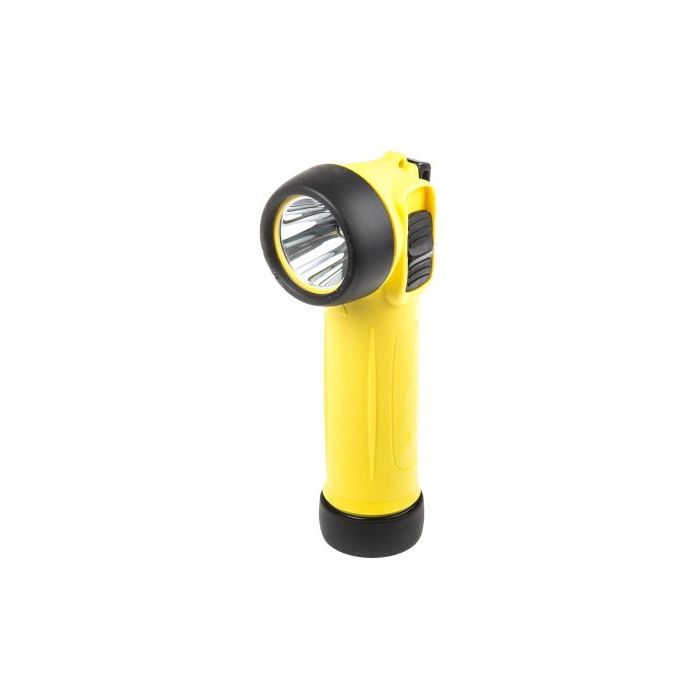

PTL-611 Portable Test Lamp for RIV-601/F and RIV-601P/F and IR Flame Detectors
Description
The PTL-611 Portable Test Lamp is a plastic ATEX (zone 1-2, 21-22) shock-proof torch lamp with high intensity light which is modulated at a frequency of 23Hz so as to be used for external testing of RIV-601/F and RIV-601P/F IR Flame Detectors, as an alternative to the internal test feature built-in inside these detectors.
The working distance is over 10 meters, normally adequate for most common applications. The Portable Test Lamp is powered by 2 non rechargeable alkaline batteries size D (LR20) with an autonomy of more than 12 hours.
The lamp is turned on by a slide switch on the side.
Specifications
Xenon filled filament bulb lamp 2.4V – 0.7A (spare lamp included).
Light beam aperture about 5 degrees. Modulation by 50% pulses (50% on, 50% off) with 23Hz frequency.
Operating distance from detector over 10 meters.
Powered by 2 non rechargeable alkaline batteries size D (LR20), autonomy of more than 12 hours, not included. IP67 protection.
Ex II 2GD Ex eb ib IIB T4 Gb Ex tb IIIC T95°C Db ATEX certified (zone 1 and zone 2 gas, zone 21 and zone 22 dust).
Operating temperature -20°C +40°C. Dimensions 200x85x60mm. Gross weight 300 grams.
The PTL-611 Portable Test Lamp is a plastic ATEX (zone 1-2, 21-22) shock-proof torch lamp with high intensity light which is modulated at a frequency of 23Hz so as to be used for external testing of RIV-601/F and RIV-601P/F IR Flame Detectors, as an alternative to the internal test feature built-in inside these detectors.
The working distance is over 10 meters, normally adequate for most common applications. The Portable Test Lamp is powered by 2 non rechargeable alkaline batteries size D (LR20) with an autonomy of more than 12 hours.
The lamp is turned on by a slide switch on the side.
Specifications
Xenon filled filament bulb lamp 2.4V – 0.7A (spare lamp included).
Light beam aperture about 5 degrees. Modulation by 50% pulses (50% on, 50% off) with 23Hz frequency.
Operating distance from detector over 10 meters.
Powered by 2 non rechargeable alkaline batteries size D (LR20), autonomy of more than 12 hours, not included. IP67 protection.
Ex II 2GD Ex eb ib IIB T4 Gb Ex tb IIIC T95°C Db ATEX certified (zone 1 and zone 2 gas, zone 21 and zone 22 dust).
Operating temperature -20°C +40°C. Dimensions 200x85x60mm. Gross weight 300 grams.
| Product Name | PORTABLE TEST LAMP FOR RIV-601/F and RIV-601P/F and IR FlAME DETECTORS |
|---|
