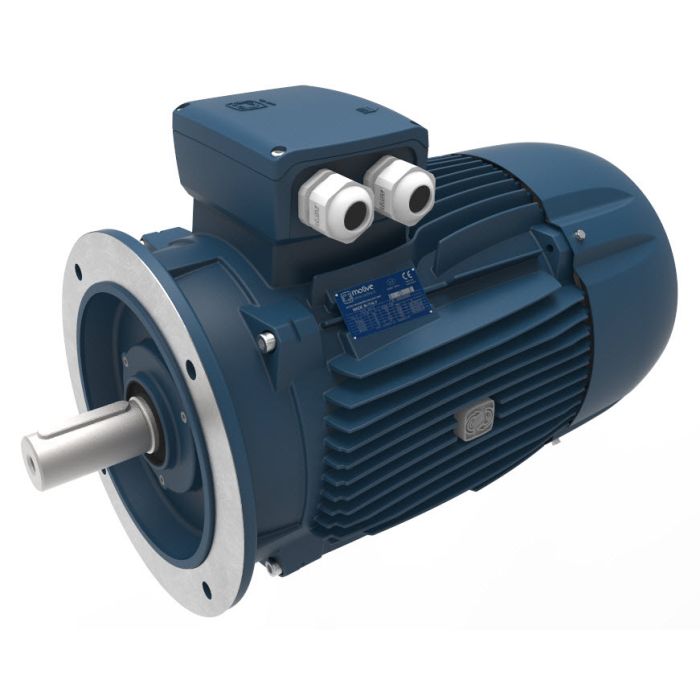

MOTOR 160MA-2 2 POLES B5 KW 11 400/690 IE3

Motive three phase motors from size 160 up to size 355 are made in cast-iron and have all those main features of the Delphi series, among which:
standardized dimensions according to International standards (IEC 72-1)
multiple voltage and multi-frequency 50/60Hz,
F class insulation, [oupon request H or H+ (delfire)]
S1 continuous duty service,
IP55 protection (IP56, 66 and 67 on request)
tropicalized winding and reinforced insulation
suitable for inverter power supply* [from 110kW and up we recommend to order the motor with insulated barings (option)]
