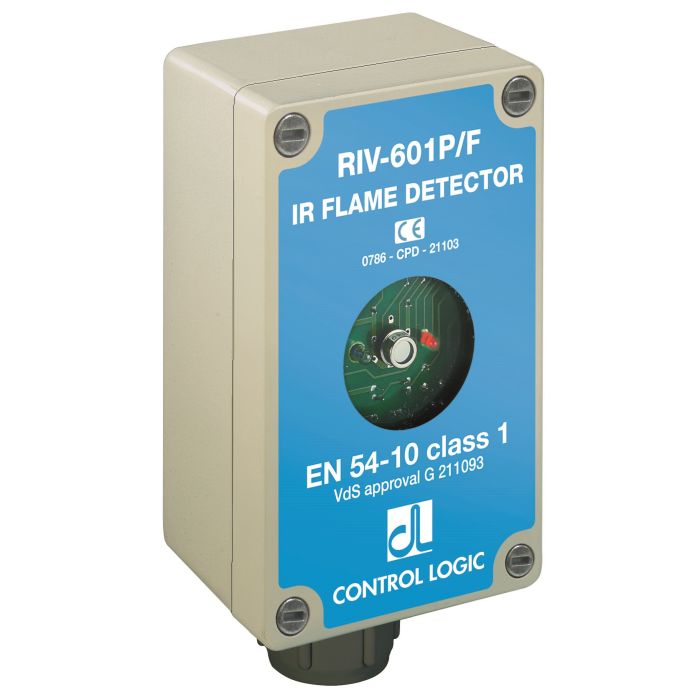

IR FLAME DETECTOR MODEL RIV-601P/F WATERTIGHT ENCLOSURE
€939.40
€770.00
In stock
SKU
1000699
The IR flame detector model RIV-601P/F is an electronic optical fire detector device that responds immediately to the thermal infrared radiation emitted by fire, and is tuned to the pulse frequency of the flame to ignore sun, lamps and other light and infrared radiation sources.
WHY IR (infrared) FLAME DETECTOR
Eye is faster than nose. In the event of live fire the IR flame detector responds immediately. Its behaviour is similar to that of the eye. In fact it "sees" the radiation emitted by fire, and its sensitivity is inside a cone of 90° which is called the field of view. The minimum flame size that can be detected by the RIV-601P/F varies with the distance. It doubles at double distance and is half at half distance. The sensitivity value is 2-3% of the distance. For example, at 10 m the smallest detectable flame size is 20-30 cm.
WHY IR (infrared) FLAME DETECTOR
Eye is faster than nose. In the event of live fire the IR flame detector responds immediately. Its behaviour is similar to that of the eye. In fact it "sees" the radiation emitted by fire, and its sensitivity is inside a cone of 90° which is called the field of view. The minimum flame size that can be detected by the RIV-601P/F varies with the distance. It doubles at double distance and is half at half distance. The sensitivity value is 2-3% of the distance. For example, at 10 m the smallest detectable flame size is 20-30 cm.
IR FLAME DETECTOR MODEL RIV-601P/F WATERTIGHT ENCLOSURE
Cast aluminium watertight case, IP 66 grade protection (dust and water spray). Explosion-proof available with the model RIV-601P/FA.
Power voltage 24VDC ±15% (20 to 28V). Current consumption 13 mA in stand-by (0.25W), 50 mA in alarm state (max 1.5W including 20 mA for test).
Anti-inversion diode on +24V and + Test (T+).
Spectral response infrared 1 to 3 micron.
Tuned to flame pulsing frequency (flickering).
Field of view 90° cone. The detector can see outside the field of view or indirectly by reflection, or even through smoke, with a reduced sensitivity.
Sensitivity 2-3% of the distance, which means that the smallest detectable flame size is 2-3% of the distance. For example, at 10 m the smallest flame size is 20 cm. Typical covering figure is 400 square meters at 20 m distance.
Alarm delay time set to 5 sec. Adjustable from 1 to 10 sec. Reset is automatic. The detector turns on 5 seconds after the flame is started. As soon as the flame stops, the detector returns off.
Front LED lamp lights in alarm. It blinks shortly during the teletest.
Output on changeover SPDT relay contact rated 1A 30VDC. Other output on NPN transistor open collector rated 50mA 24VDC, which goes low in alarm.
Built-in "Teletest" device for the remote monitoring of the detector ability. Needs a 24VDC ±15% 20mA. Built-in modulator. When the teletest circuit is powered,a small incandescent bulb placed near the sensor starts pulsing so as to simulate a flame. During the test the detector turns on for half a second every 4 seconds. The teletest can be remotely controlled from the control panel, or can be wired for a continuous and automatic operation. Control panel must recognise the short test pulses from the alarm state, which is steady on.
Electrical wiring on 7 way terminal block, plug-in type, 10 pitch.
Cable entry fitting M25, internal diameter 13-18mm.
Operating temperature -20 +60°C.
Storage temperature -40 +85°C.
Dimensions 180 x 85 x 65 (H) mm (mounting holes 125 x 70 mm).
Weight 700 grams.
Manufactured in compliance with the essential requirements of the CPR Regulation.
EN 54-10 class 1 approved, EC-certificate of conformity no.0786-CPD-21103, VdS Approval no. G 211093.
Eye is faster than nose. In the event of live fire the IR flame detector responds immediately. Its behaviour is similar to that of the eye. In fact it "sees" the radiation emitted by fire, and its sensitivity is inside a cone of 90° which is called the field of view. The minimum flame size that can be detected by the RIV-601P/F varies with the distance. It doubles at double distance and is half at half distance. The sensitivity value is 2-3% of the distance. For example, at 10 m the smallest detectable flame size is 20-30 cm.
WHY IR (infrared) FLAME DETECTOR
Eye is faster than nose. In the event of live fire the IR flame detector responds immediately. Its behaviour is similar to that of the eye. In fact it "sees" the radiation emitted by fire, and its sensitivity is inside a cone of 90° which is called the field of view. The minimum flame size that can be detected by the RIV-601P/F varies with the distance. It doubles at double distance and is half at half distance. The sensitivity value is 2-3% of the distance. For example, at 10 m the smallest detectable flame size is 20-30 cm.
IR FLAME DETECTOR MODEL RIV-601P/F WATERTIGHT ENCLOSURE
Cast aluminium watertight case, IP 66 grade protection (dust and water spray). Explosion-proof available with the model RIV-601P/FA.
Power voltage 24VDC ±15% (20 to 28V). Current consumption 13 mA in stand-by (0.25W), 50 mA in alarm state (max 1.5W including 20 mA for test).
Anti-inversion diode on +24V and + Test (T+).
Spectral response infrared 1 to 3 micron.
Tuned to flame pulsing frequency (flickering).
Field of view 90° cone. The detector can see outside the field of view or indirectly by reflection, or even through smoke, with a reduced sensitivity.
Sensitivity 2-3% of the distance, which means that the smallest detectable flame size is 2-3% of the distance. For example, at 10 m the smallest flame size is 20 cm. Typical covering figure is 400 square meters at 20 m distance.
Alarm delay time set to 5 sec. Adjustable from 1 to 10 sec. Reset is automatic. The detector turns on 5 seconds after the flame is started. As soon as the flame stops, the detector returns off.
Front LED lamp lights in alarm. It blinks shortly during the teletest.
Output on changeover SPDT relay contact rated 1A 30VDC. Other output on NPN transistor open collector rated 50mA 24VDC, which goes low in alarm.
Built-in "Teletest" device for the remote monitoring of the detector ability. Needs a 24VDC ±15% 20mA. Built-in modulator. When the teletest circuit is powered,a small incandescent bulb placed near the sensor starts pulsing so as to simulate a flame. During the test the detector turns on for half a second every 4 seconds. The teletest can be remotely controlled from the control panel, or can be wired for a continuous and automatic operation. Control panel must recognise the short test pulses from the alarm state, which is steady on.
Electrical wiring on 7 way terminal block, plug-in type, 10 pitch.
Cable entry fitting M25, internal diameter 13-18mm.
Operating temperature -20 +60°C.
Storage temperature -40 +85°C.
Dimensions 180 x 85 x 65 (H) mm (mounting holes 125 x 70 mm).
Weight 700 grams.
Manufactured in compliance with the essential requirements of the CPR Regulation.
EN 54-10 class 1 approved, EC-certificate of conformity no.0786-CPD-21103, VdS Approval no. G 211093.
| Product Name | IR FLAME DETECTOR MODEL RIV-601P/F WATERTIGHT ENCLOSURE |
|---|
