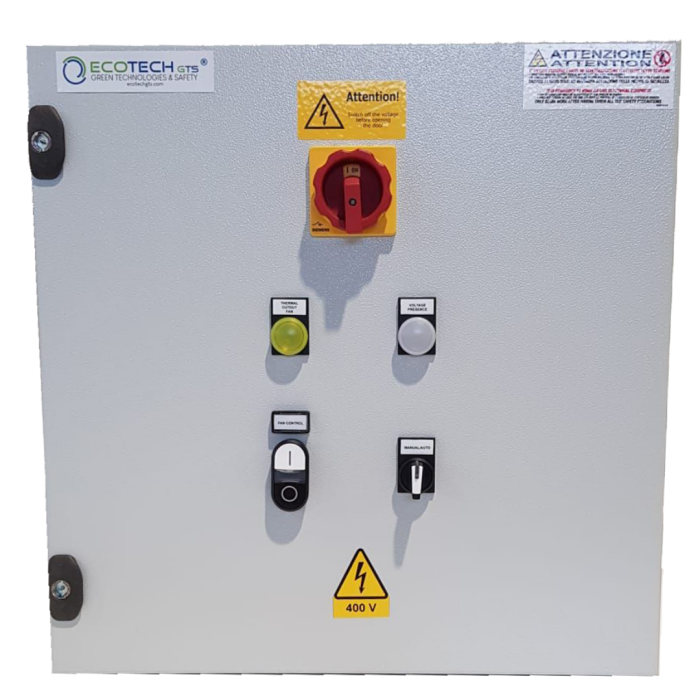

ELECTRICAL PANELS FOR MOTORS FROM 0.75 KW TO 7.5 KW DIRECT START

ELECTRIC PANELS FOR AIR EXTRACTION AND FILTRATION SYSTEMS

ELECTRIC PANELS FOR FAN MOTORS FROM 0.75 KW TO 7.5 KW

ELECTRICAL DIAGRAM IN ITALIAN

LABELS IN ITALIAN

FAN MOTOR START: DIRECT
Power supply 3F+T 400Vac 50/60Hz
General door lock switchManual/automatic selector with provision for external/remote automatic start and manual start/stop button
Safety transformer for controlling auxiliary components
Protection by fuses
Class 20 thermal relay
Emergency mushroom button
Voltage presence indicator light
Fan operation indicator light
Fan thermal indicator light
Carpentry painted RAL7035 with external protection degree IP65

The panels have been designed to comply with the European and international regulations in force for low voltage panels.EN 61439-1 (CEI 17-113) "Low-voltage switchgear and controlgear assemblies (LV switchgear) - Part 1: General rules" and EN 61439-2 (CEI 17-114), "Low-voltage switchgear and controlgear assemblies (LV switchgear) - Part 2: Power switchgear.

The electrical panels also comply with:
Directive 2014/35/EC "Low voltage electrical components"
EN60204-1 "Electrical equipment of machinery"
EN61000-6-4 "Electromagnetic compatibility"
EN60259 "Degrees of protection provided by enclosures"

BRANDS USED
CARPENTRY: CEB/ZANARDO
CONTACTORS: SIEMENS / SCHNEIDER ELECTRIC
PROTECTION RELAYS: SIEMENS / SCHNEIDER ELECTRIC
AUXILIARY RELAYS: FINDER / OMRON
FUSE HOLDER: SIEMENS / SCHNEIDER ELECTRIC
PUSH-BUTTON PANEL: SIEMENS / SCHNEIDER ELECTRIC
SPRING TERMINALS: WAGO

ELECTRIC PANEL SUPPLIED WITH:
- WIRING DIAGRAM
- INSTRUMENTAL TESTS OF TESTING
- DECLARATION OF CONFORMITYOPTIONAL

OPTIONALS:

- PROGRAMMER KIT WITH 230 VAC PRESSURE ALARM LIGHT; 230 VAC power supply connection for external control unit for filter cleaning management and dP alarm light on the electrical panel door.
- PROGRAMMER KIT WITH 110 VAC PRESSURE ALARM LIGHT; 110V AC power supply connection for external control unit for filter cleaning management and dP alarm light on the electrical panel door.
- PROGRAMMER KIT WITH 24 VAC PRESSURE ALARM LIGHT; 24 VAC power supply for external control unit for filter cleaning management and dP alarm light on the electrical panel door.
- PROGRAMMER KIT WITH 24 VDC PRESSURE ALARM LIGHT; 24 VDC power supply for external control unit for filter cleaning management and dP alarm light on the electrical panel door.
