ELECTRIC PANELS MOTOR FROM 3.00 TO 37.00 KW SMART CONTROL LITE

ELECTRIC PANELS FOR AIR INTAKE AND FILTRATION SYSTEMS SMART CONTROL LITE

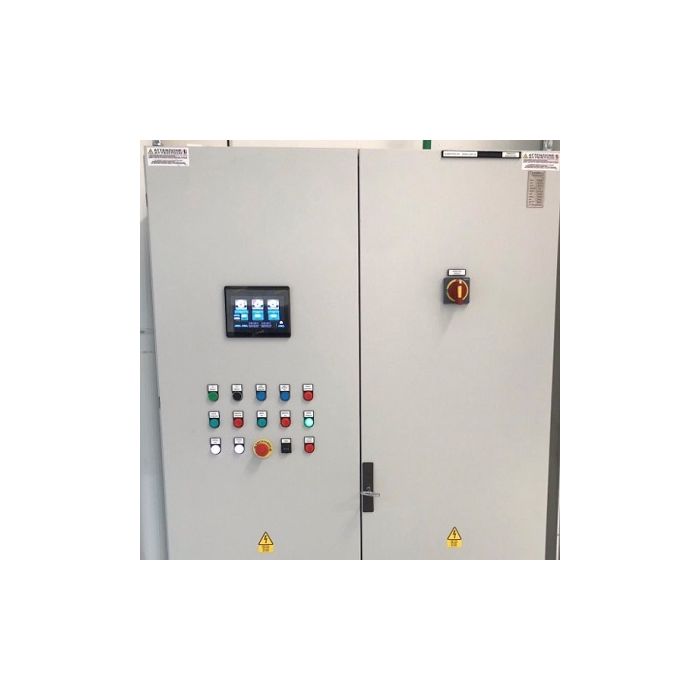

ELECTRIC PANELS - INVT INVERTER START-UPELECTRIC DIAGRAM IN ITALIANLABELS IN ITALIANSMART CONTROL LITE - FILTER CLEANING MANAGEMENT UP TO 16 VALVES AND INVERTER MANAGEMENTINVERTER INVT N.A. FOR FAN MOTORPTC MOTOR CONTROL FROM INVERTERELECTRIC PANEL EQUIPPED WITH ECOTECH GTS SMB ELECTRONICSON-BOARD PRESSURE SWITCH SMB FOR INVERTER MANAGEMENTON-BOARD PRESSURE SWITCH SMB FOR FILTER CLEANING SYSTEM MANAGEMENT UP TO 16 PNEUMATIC VALVES POWERED BY 24 VDC AND 24 VAC, EXPANDABLE4 "TOUCH SCREEN eSMART04 is an operator panel designed to offer exceptional performance in industrial automation applications. The panel is equipped with a bright 4-inch resistive touch screen display with fully dimmable LED backlighting.The eSMART series boasts an IP66 protection rating on the front, no other low-cost HMI has this degree of protection and features UL cULus certifications: UL508 and Class 1 Div 2 Haz. Loc., ATEX, DNV-GL, EU RO MR, allowing use in the most difficult environments.o 4.3" TFT color display, LED backlighto 480x272 pixel (WVGA) resolution, 64K colorso Resistive touchscreeno Ethernet porto USB portEGTS SMART CONTROL LITE SOFTWARE
TECHNICAL CHARACTERISTICS SUPPLY
- Power supply 3F+T 400Vac 50/60Hz
- General door lock switch
- Manual/automatic selector with provision for external/remote automatic start and manual start/stop button
- Connection in terminal block for remote emergency management
- Safety transformer for controlling auxiliary components
- Protection by fuses
- Emergency mushroom button
- Voltage presence indicator light
- Fan operation indicator light
- Fan thermal indicator light
- RAL7035 painted carpentry with external protection degree IP54
- Inverter parameterization service
- The panels have been designed to comply with the current European and international regulations for low voltage switchboards.
EN 61439-1 (CEI 17-113) "Low-voltage switchgear and controlgear assemblies (LV switchgear) - Part 1:General rules" and EN 61439-2 (CEI 17-114), "Low-voltage switchgear and controlgear assemblies (LV switchgear) - Part 2: Power switchgear.
The switchgear also complies with:
Directive 2014/35/EC "Low-voltage electrical components"
EN60204-1 "Electrical equipment of machinery"
EN61000-6-4 "Electromagnetic compatibility"
EN60259 "Degrees of protection provided by enclosures"

COMPONENTS USED
CARPENTRY: CEB / ZANARDO / RITTAL
SOCOMEC / SIEMENS DISCONNECTOR
CONTACTORS: SIEMENS / SCHNEIDER ELECTRIC
PROTECTION RELAYS: SIEMENS / SCHNEIDER ELECTRIC
AUXILIARY RELAYS: FINDER / OMRON
FUSE HOLDER: VIMEX / SIEMENS / SCHNEIDER ELECTRIC
PUSHBUTTON PANEL: SIEMENS / SCHNEIDER ELECTRIC
SPRING TERMINALS: WAGO
INVERTER: INVT
TOUCH PANEL: EXOR
ELECTRONICS: EGTS

ELECTRIC PANELS SUPPLIED WITH:
- ELECTRICAL DIAGRAM
- INSTRUMENTAL TESTS
- DECLARATION OF CONFORMITYOPTIONS
- READING AND MANAGEMENT OF DUST DETECTION PROBES
- ABSOLUTE VALUE TIBOELECTRIC PROBEDUST CONCENTRATION MEASUREMENT PROBE FOR AIR EXTRACTION AND TREATMENT SYSTEMS.

OPERATING PRINCIPLE The triboelectric probe uses the principle of transfer of electric charges, transported by dust immersed in a gaseous fluid, to an electrode connected to a specific electronic circuitry capable of amplifying the weak signal. The amount of charge induced on the electrode is proportional to the amount of dust present in the gaseous fluid. An increase in the concentration of dust determines a proportional increase in the signal that reaches the microprocessor. By applying sophisticated mathematical algorithms, the individual dust particles are counted in such a way as to be able to calculate their concentration in mg per cubic meter.
- MANUAL/AUTOMATIC CONTROL OF A SCREW WITH SHUT-OFF TIMER UP TO 2 KWContactor and thermal switch for the control of a screw conveyor up to 2 kw. The accessory is equipped with a selector, with safety key, START / STOP / AUTOMATIC, managed by the control panel door, shutdown delay timer and operating status light. System shutdown with active thermal trip alarm.Invia commentiRiquadri lateraliCronologiaSalvate
