ELECTRIC PANELS FOR MOTORS FROM 7.5 KW TO 45 KW STAR / DELTA STARTING

ELECTRIC PANELS FOR AIR EXTRACTION AND FILTRATION SYSTEMS

ELECTRIC PANELS FOR FAN MOTORS FROM 7.5 KW TO 45 KW

ELECTRIC DIAGRAM IN ITALIAN

LABELS IN ITALIAN

FAN MOTOR STARTING: STAR / DELTA

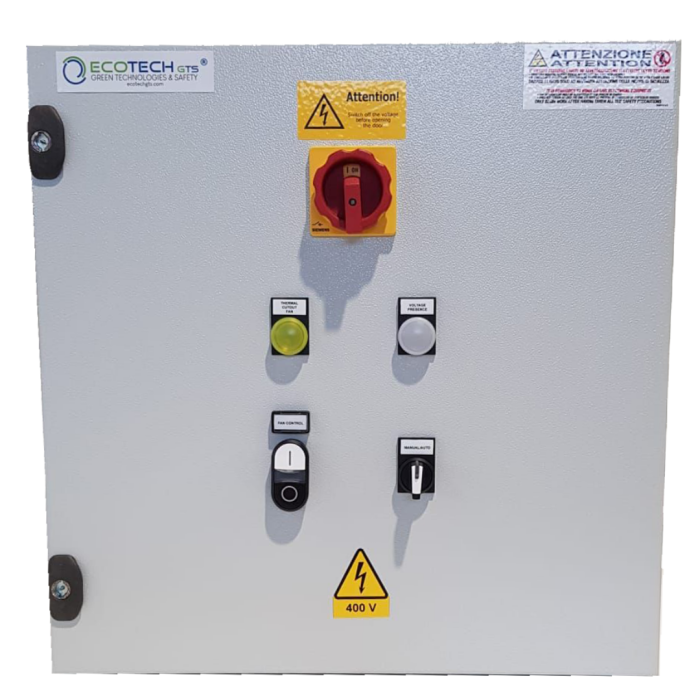

Power supply 3F+T 400Vac 50/60HzGeneral door lock switch
Manual/automatic selector with provision for external/remote automatic starting and manual start/stop button
Safety transformer for controlling auxiliary components
Protection by fusesClass 20 thermal relay
Emergency mushroom button
Voltage presence indicator light
Fan operation indicator light
Fan thermal indicator light
Carpentry painted RAL7035 with external protection degree IP65
The panels have been designed to comply with the European and international regulations in force for low voltage panels.EN 61439-1 (CEI 17-113) "Low voltage switchgear and controlgear assemblies (LV panels) - Part 1: General rules" and EN 61439-2 (CEI 17-114), "Low voltage switchgear and controlgear assemblies (LV panels) - Part 2: Power panels.

The electrical panels also comply with:
Directive 2014/35/EC "Low voltage electrical components"
EN60204-1 "Electrical equipment of machinery"
EN61000-6-4 "Electromagnetic compatibility"
EN60259 "Degrees of protection provided by enclosures"

BRANDS USED
CARPENTRY: CEB/ZANARDO
CONTACTORS: SIEMENS / SCHNEIDER ELECTRIC
PROTECTION RELAYS: SIEMENS / SCHNEIDER ELECTRIC
AUXILIARY RELAYS: FINDER / OMRON
FUSE HOLDER: SIEMENS / SCHNEIDER ELECTRIC
PUSH-BUTTON PANEL: SIEMENS / SCHNEIDER ELECTRIC
SPRING TERMINALS: WAGO

ELECTRIC PANEL SUPPLIED WITH:
- WIRING DIAGRAM
- TESTS TESTING INSTRUMENTS
- DECLARATION OF CONFORMITYOPTIONAL

OPTIONALS

- ELECTRONIC RELAY KIT PTC MOTOR CONTROL; Electronic relay for thermal protection control of the motor with warning light and contact for switching off the fan motor.
- PROGRAMMER KIT WITH PRESSURE ALARM LIGHT 230 VAC; 230 VAC power supply connection for external control unit for filter cleaning management and dP alarm light on the electrical panel door.
- PROGRAMMER KIT WITH PRESSURE ALARM LIGHT 110 VAC; 110V AC power supply connection for external control unit for filter cleaning management and dP alarm light on the electrical panel door.
- PROGRAMMER KIT WITH PRESSURE ALARM LIGHT 24 VAC; 24 VAC power supply for external control unit for filter cleaning management and dP alarm light on the electrical panel door.
- PROGRAMMER KIT WITH PRESSURE ALARM LIGHT 24 VDC; 24 VDC power supply for external control unit for filter cleaning management and dP alarm light on the electrical panel door.
