DROP-THROUGHT ROTARY VALVES RV05 KW 0,55 POLI 6 RPM 20 VULKOLAN TIPS ATEX

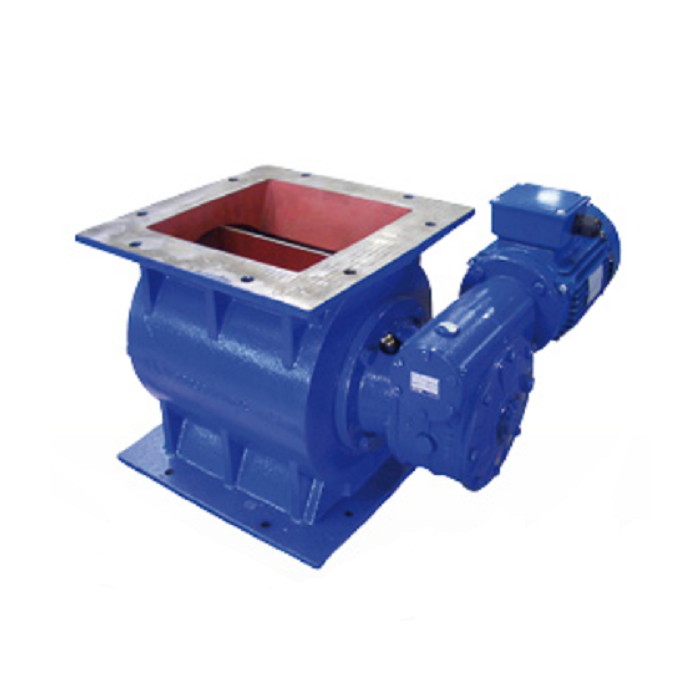

RV Drop-Through Rotary Valves with square inlet consist of a tubular cast iron or stainless steel casing, a horizontally mounted rotor with a certain number of V-shaped cross section compartments, a drive unit and a casing cover opposite the drive end.
- 5 LITERS / LAP
- SPEED 20 RPM
- MAXIMUM POWER 6 M3 / H
- DIRECT MOTORIZATION WITH ENDLESS SCREW REDUCER
- POWER 0.55 KW 6 POLES
- ROTOR DIAMETER 220 MM
- INLET AND OUTLET MOUTH 200X200 MM
- TOTAL VACUUM WEIGHT 73 KG
- CAST IRON BODY
- CAST IRON FLANGES
- CAST IRON ROTOR
- VULKOLAN TIPS ON THE ROTOR BLADES
- ATEX CERTIFICATION AREA 20/22

Function
RV Rotary Valves are designed for maximum versatility in application. They are suitable for controlled discharging and feeding of powdery or granular materials from silos, hoppers, pneumatic conveying systems, bag filter houses, or cyclones.
Benefits
Compatible with other WAMGROUP equipment thanks to WAM standard flanges
Robust, compact design
Easy access to all internal mechanical components
