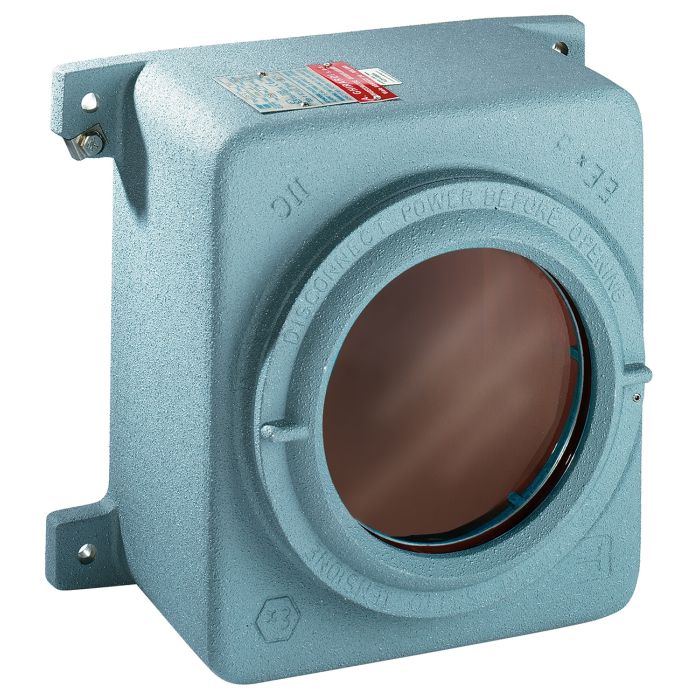

ADF-600AP EXPLOSION-PROOF ENCLOSURE
€634.40
€520.00
In stock
SKU
1000704
RIV-601P/FA IR Flame detector explosion-proof model RIV-601P/F model plus ADF-600AP explosion-proof enclosure
The explosion proof model RIV-601P/FA is made by mounting the watertight model RIV-601P/F inside the explosion-proof case.
The RIV-601P/FA shipping package includes:
• 1 IR flame detector model RIV-601P/F
• 1 explosion-proof enclosure model ADF-600AP
• 1 set technical information
ADF-600AP explosion-proof enclosure
• Cast aluminium external grey epoxy paint (RAL 7000), internal anti-condensing orange paint (RAL 2004).
• Type of protection II 2 GD Ex d IIC T6 Ex tb IIIC T85°C IP66 (85°C max case temperature, referred to 40°C ambient).
• Conforms to ATEX Directive, BVI 14 ATEX 0007 certificate.
• Dimensions: mm. 225x255x170h main body only (mounting holes 260x220 - overall dimensions 290x255).
• Weight: kg 10,5 case only - kg 11,5 with detector inside.
• Sensitivity reduced to 4% of the distance.
• 1” Gas cable entry.
The RIV-601P/FA shipping package includes:
• 1 IR flame detector model RIV-601P/F
• 1 explosion-proof enclosure model ADF-600AP
• 1 set technical information
ADF-600AP explosion-proof enclosure
• Cast aluminium external grey epoxy paint (RAL 7000), internal anti-condensing orange paint (RAL 2004).
• Type of protection II 2 GD Ex d IIC T6 Ex tb IIIC T85°C IP66 (85°C max case temperature, referred to 40°C ambient).
• Conforms to ATEX Directive, BVI 14 ATEX 0007 certificate.
• Dimensions: mm. 225x255x170h main body only (mounting holes 260x220 - overall dimensions 290x255).
• Weight: kg 10,5 case only - kg 11,5 with detector inside.
• Sensitivity reduced to 4% of the distance.
• 1” Gas cable entry.
| Product Name | ADF-600AP EXPLOSION-PROOF ENCLOSURE |
|---|
